NanoCove™ Ultra-Slim LED Lighting

120° x 120° beam angle, available as RGB or White
Linear, color-changing LED lighting fixture for architainment applications

NanoCove is a compact yet brilliant fixture, offering an level of control that is unmatched for such a small design. Only a 0.5" wide and 0.281" tall, this product is designed to provide dazzling results for those with limited space. Each foot-long fixture uses Performance Profiles which provides a wide range of controllable scenes, and offering a flicker-free operation for smooth color transitions.
​
High-Resolution Lighting
NanoCove features ChromaBlend™, a proprietary driver technology. This allows each fixture to blend the color of throughout the full length of the adjacent fixtures, creating a perfectly blended color gradient with an effective resolution of 2.5 inches. This effect is created automatically, without the need for an additional control system.

DMX Controllable
NanoCove is controlled via DMX512-A using either 8 or 16 bit (24 or 48 bits per fixture) control over each color, mixing red, green and blue light to provide a possible array of up to 281.5 trillion assignable color combinations prior to the internal smoothing process. Each unit employs RDM support for easy addressing and configuration.

High Dynamic Range
NanoCove's unique driver design provides excellent low-end dimming and brightness control, great for creating low-light conditions. Additionally, with the enhanced-spectrum modulation PWM strobing is eliminated, providing a visually-steady illumination. This is an important visual effect to direct the attention of the audience to a point of interest.

Performance Profiles
By combining built-in features, NanoCove can be configured for a multitude of control scenarios . With 36 built in profiles to choose from, features like Bit Depth, Internal Fade Slewing, ChromaBlend, and Low-End Curve Correction all make NanoCove a powerfully adaptable lighting device.
​
Efficient Design
Only using 3.6 watts of power for maximum illumination, all while packed into a small package. The manufacturing process is streamlined to produce minimal waste, most of which is recyclable.

Item	Specifications	NCRBG-120P	NCW-120P
Output	Lumens1	~140 lm	~440 lm
	Primary Cone	120° x 120°
	Color Mix Distance	~0" (internal to fixture)
	Color Range	281.5 trillion colors	65.5k (grayscale shades)
Electrical	Power Source	Use only with Class 2 power unit
	Input Voltage	12 VDC
	Fixture Current	0.3A max at full output	0.6A max at full output
	Chained Units	Up to 14/power supply	Up to 8/power supply
Safety
	Environment	Dry locations, Indoor use only
	Fixture Certifications	ETL / Intertek Listed Conforms to ANSI/UL Std. 2108 Certified to CAN/CSA Std. C22.2#250.0
Physical	Dimensions2 (L x W x H)	12" x 0.5" x 0.281" (305 x 13 x 7 mm)
	Weight2	1.6oz (45g) per foot max.
	Housing Material	Anodizied Aluminum Extrusion
	Lens	Clear Cast Acrylic
	Mounting	Various specialty brackets available
Control	Signal Protocol	DMX512-A, E1.20 RDM enabled
	Bit Depth	8 or 16 bits per color (24 or 48 bits per fixture)
	Addressing	Set via RDM
	Chained Control	Up to 170 units per DMX512 Universe
	Modulation Type	Enhanced-spectrum Modulation, ChromaBlendTM and 36 Performance Profiles
Patent Licensing	ChromaCove operates under a direct license agreement with Philips to utilize certain patented technologies. Proof of this agreement is available upon request.
Origin	This product is designed and manufactured in the United States of America

*Specifications are subject to change without notice. Model revisions and the latest innovations may not be listed here.
1 Total lumens of light availabe from the unbalanced output of the LEDs within the light engine.
2 Dimensions and weight do not include mounting brackets or other hardware.

​All ChromaCove™ LED fixtures are designed and manufactured in the USA using high-quality CREE leds, RoHS compliant components and a lead-free process.

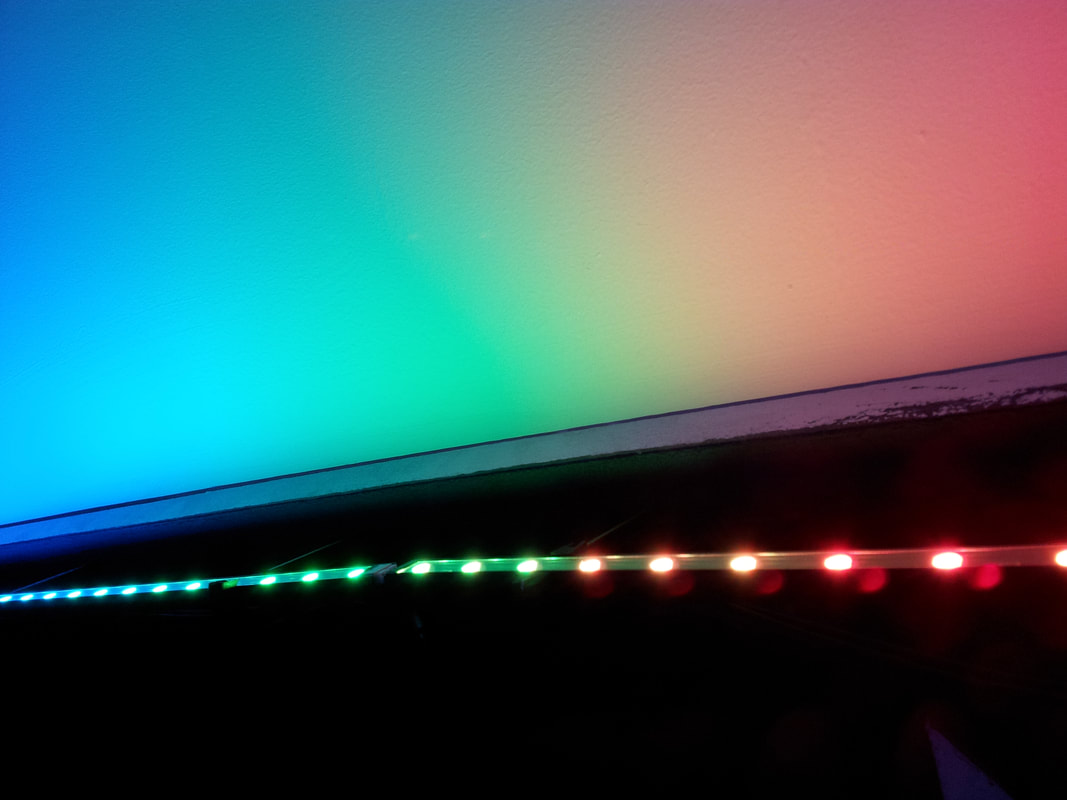

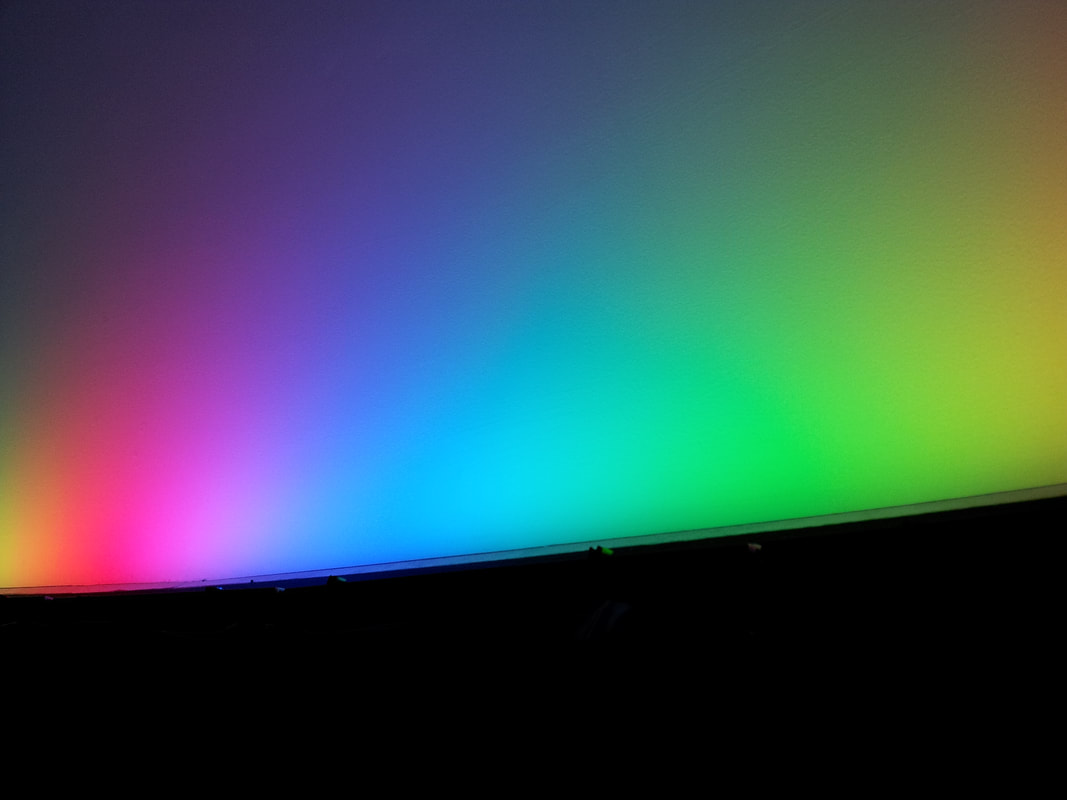

NanoCove creates a uniform blend of color across each fixture with the ChromaBlend technology.

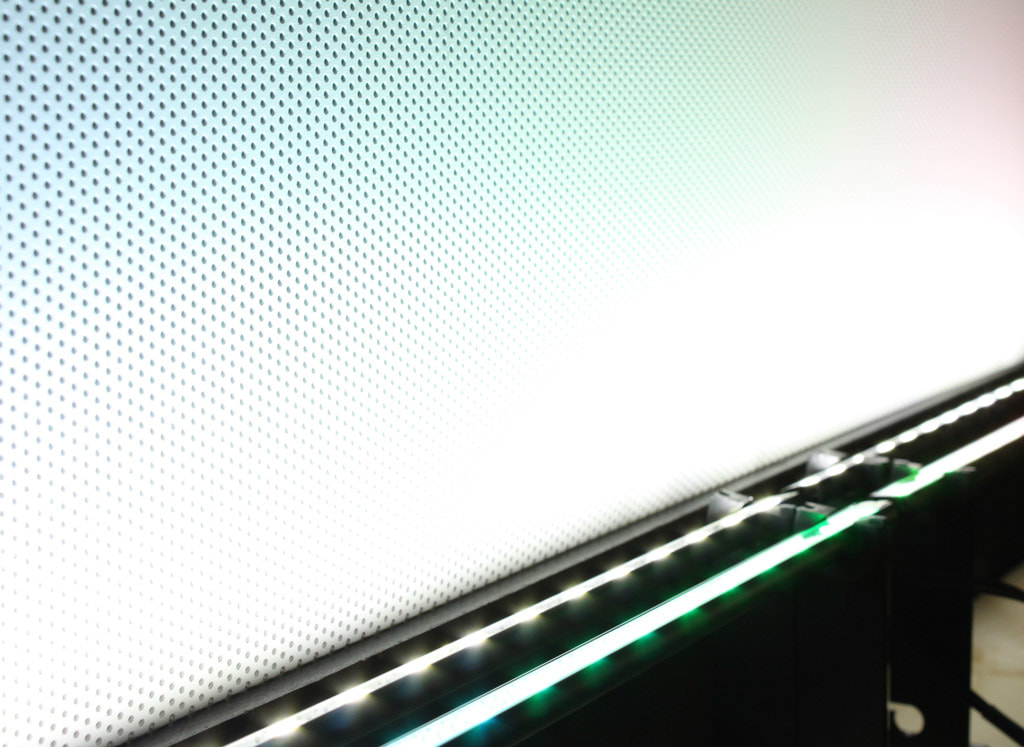

NanoCove with RGB combined to produce a vibrant bright white.
