​ChromaCove™ Signature Series High-Power LED Lighting

140° x 140° beam angle, available as RGB or White
Linear, color-changing LED lighting fixture for architainment applications
The brightest ChromaCove™ LED lighting has a super wide-angle output with a high dynamic range driver. This makes it perfect for large dome installations.


Bright and Colorful
The ChromaCove Signature Series High-Power fixture is a very bright and colorful fixture. 15 CREE LEDs offer 10-20 times more power than the standard consumer RGB fixtures with only 50-100 lumens. At ~1100 lumens of the primary colors of light RGB or ~2100 lumens of white, these fixtures really are the brightest fixtures on the market.

DMX Controllable
Controlled via standard DMX512-A using 16 bits of precision per color in each fixture, blending red, green and blue to a providing up to 281.5 trillion color combinations. (8-bit/ch also available)

High Dynamic Range
Excellent low-end dimming and brightness control is achieved with ChromaCove's unique driver designed specifically to meet the challenges of the planetarium and immersive theater market. Perfect for use in low-light conditions, ChromaCove LED lighting does not "pop" on, flicker or stutter as it fades. Additionally, PWM strobing is eliminated with our enhanced-spectrum modulation, providing a visually steady illumination. This is important for use in areas where viewers are visually following a moving point of interest, such as guiding visitors to an exit.

Personality Profiles
Each fixture can be configured for a wide range of control scenarios by combining built-in features. With 36 unique profiles to choose from, features such as Low-End Curve Correction, ChromaBlend, Bit Depth and Internal Fade Slewing make the ChromaCove High Power fixtures a powerfully adaptable lighting device.

Adaptive Mounting
With a wide variety of brackets specifically designed to mount each fixture for a multitude of various situations, while providing ease of angle adjustment.

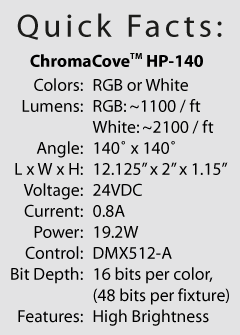

Item	Specification	CC-HP140-RGB	CC-HP140-W
Output	Lumens1	~1,100 lm	~2,100 lm
	Primary Cone	140° x 140°
	Color Mix Distance3	~3" (~102 mm)
	Color Range	281.5 trillion colors	Warm or Cool White
Electrical	Fixture Voltage	24 VDC
	Fixture Current	0.8 Amps @ balanced white
	Chained Units	5 units per power supply feed
Physical	Dimensions2 (L x W x H)	12" x 2" x 1.1" (305 x 51 x 28 mm)
	Weight2	1.25 lb (0.57 kg)
	Housing Material	Aluminum Extrusion
	Lens3	Diffused Acrylic
	Mounting	Various and custom bracket heights available
Control	Signal Protocol	DMX512-A
	Bit Depth	16 bits per color (48 bits per fixture)
	Modulation Type	Proprietary modulation with internal smoothing
	Chained Control	84 units per DMX512 Universe
Patents	Licensing	This fixture utilizes technology licensed from the Philips patent portfolio.
Origin	This product is designed and manufactured in the United States of America

​All ChromaCove™ LED fixtures are designed and manufactured in the USA using high-quality CREE leds, RoHS compliant components and a lead-free process.
