​ChromaCove™ Signature Series Medium-Power LED Lighting

120° x 120° beam angle
Linear, color-changing LED lighting fixture for architainment applications
The new Signature Series ChromaCove Medium Power linear LED lighting fixtures is offered in a modular design that is configured for RGB, RGBW or White. Each foot-long fixture employs our unique ChromaSmooth™ driver which allows for smooth fading and flicer-free operation with 36 selectable Personality Profiles.

High-Resolution Lighting
Rather than illuminating as a single color, each fixture optionally blends to the color of its neighbor to create a smooth color gradient with an effective resolution of 1.25" in the RGB version and 2.5" in the RGBW. This high-resolution blend effect is accomplished automatically, without increasing control system complexity or cost.

DMX Controllable
ChromaCove lighting is controlled via DMX512-A using either 8 or 16 bit control over each color, mixing red, green, blue and/or white light to provide a possible array of up to 18.4 quintillion color combinations. With fading enhanced by the internal smoothing algorithms, the control bit depth determines the range of colors, not the smoothness of the fade. Each unit employs RDM support for easy addressing and configuration in the field.

High Dynamic Range
Excellent low-end dimming and brightness control is achieved with ChromaCove's unique driver designed specifically to meet the challenges of the planetarium and immersive theater market. Perfect for use in low-light conditions, ChromaCove LED lighting does not "pop" on, flicker or stutter as it fades. Additionally, PWM strobing is eliminated with our enhanced-spectrum modulation, providing a visually steady illumination. This is important for use in areas where viewers are visually following a moving point of interest, such as guiding visitors to an exit.

Personality Profiles
Each fixture can be configured for a wide range of control scenarios by combining built-in features. With 36 unique profiles to choose from, features such as Low-End Curve Correction, ChromaBlend, Bit Depth and Internal Fade Slewing make the ChromaCove Medium Power fixtures a powerfully adaptable lighting device.

Adaptive Mounting
With a wide variety of brackets specifically designed to mount each fixture for a multitude of various situations, while providing ease of angle adjustment.

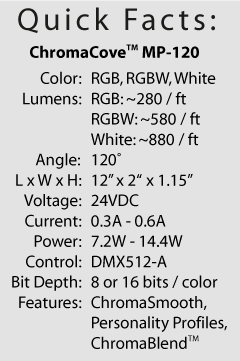

Item	Specification	CCRGB-MP-RGB	CC-MP-RGBW	CC-MP-W
Output	Lumens1	~280 lm	~540 lm	~800 lm
	Primary Cone	120° x 120°
	Color Mix Distance	~0" (internal to fixture)
	Color Range	281.5 trillion colors	18.4 quintillion	65.5k (grayscale)
Electrical	Fixture Voltage	24 VDC
	Fixture Current @ white	0.3 Amps	0.45 Amps	0.6 Amps
	Chained Units	7	5	4
Physical	Dimensions2 (L x W x H)	12.125" x 2" x 1.15" (305 x 51 x 29 mm)
	Weight2	~1lb (454 g)
	Housing Material	Anodized Aluminum Extrusion
	Lens	Clear Cast Acrylic
	Mounting	Various specialty brackets available
Control	Signal Protocol	DMX512-A, E1.20 RDM enabled
	Bit Depth	8 or 16 bits per color (24 or 48 bits per fixture)
	Addressing	Set via RDM
	Chained Control	up to 170 units per DMX512 Universe
	Modulation Type	Enhanced-Spectrum Modulation, ChromaBlendTM and 36 Performance Profiles
Patents	Licensing	This fixture utilizes technology licensed from the Philips patent portfolio.
Origin	This product is designed and manufactured in the United States of America

​All ChromaCove™ LED fixtures are designed and manufactured in the USA using high-quality CREE leds, RoHS compliant components and a lead-free process.
